GQ-5200

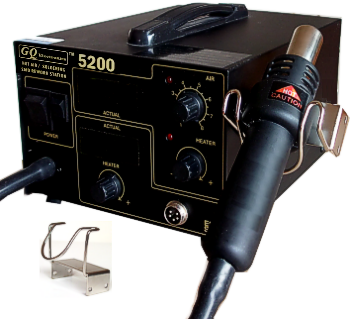

GQ-5200 SMD Rework Solder Station


1. Wide range of temperature and airflow adjustment.
2. Cool air will start to blow continuously after using thus prolonging the usage life of the heating system.
3. Two real time digital temperature monitors for actual temperature on hot air and iron.
4. Independent Celsius and Fahrenheit display control. User can select any channel any unit temperature display.
5. Microcontroller controlled proactive system displays industrial standard error and warning code.
6. Best suited for repairing QFP, SOP, PLCC and SOJ components.


Specifications:
Power Input : 110V/120V AC
Power Consumption: 270W
Temperature Range: 200-480 degrees Celsius (390 - 900degree Fahrenheit)
Heating Element: Metal Heating Core
Pump/Motor Type: Diaphragm Pump
Air Capacity: 0.3~24 L /min (max)
Station Dimensions (WxHxD): 7.5' x 5.4' x 9.6', 187mm x 135mm x 245 mm
Weight: 11 lb (4.7kg)

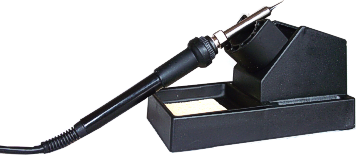

Station with hot air gun, soldering iron, Z001 Hot air gun holder, soldering iron holder, Power cord.

four size air nozzles:

  • A1125 2.5mm (0.09')
  • A1130 4.4mm (0.17')
  • A1196 7.0mm (0.27')
  • A1197 9.0mm (0.35')

    ten size/shape iron tips for different applications
  • 900M-T-I
  • 900M-T-IS
  • 900M-T-K
  • 900M-T-B
  • 900M-T-1C
  • 900M-T-2C
  • 900M-T-3C
  • 900M-T-0.8D
  • 900M-T-1.6D
  • 900M-T-2.4D

(Click to enlarge)


(Click to enlarge)
